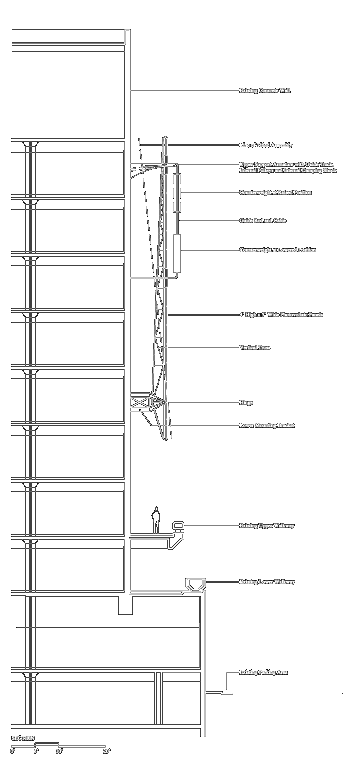

Section through the Forestal
Building and the applied Sun Wall.
Partial views of the Sun
Wall in stationary and randomly moving positions. |
The wall
is covered by solar collectors moving with the wind.
Photovoltaic panels are applied
to an array of 52 vertical trusses. Each truss is connected to the wall
by an independent hinge. The tops of the trusses are free to move, stabilized
by a counterweight, guide track and damping shocks. As the southern wind
blows and applies pressure to the face of the wall, the trusses and their
planes of photovoltaic panels gradually lean back. When the wind pauses,
each assembly returns to a vertical position by the force of a counterweight
and gravity. The 52 units act individually, allowing random variation in
the movement and composition of the photovoltaic array.
The total photovoltaic area
measures 64' high x 260' long, or 16,640 square feet. Using 16W/square
foot as an approximation of the energy output for commercially produced
photovoltaic panels, the sun wall acts as a 266kW system. Unused and off-peak
energy production is passed directly to the utility grid and issued as
a monetary credit to the building. Maintenance of the array is available
at the front and rear of the panels. A locking device allows safe access
and also serves to fix the panels during severe weather conditions.
|
